Comparison of Low-Loss and More Reliable Fiber Optic Connectors

LC connectors generally offer the lowest insertion loss and highest port density, while SC and MPO connectors provide robust performance for legacy and high-fiber-count applications, respectively.

Key Performance Metrics

Insertion Loss (IL): Measures optical power loss at the connection. Lower IL indicates better performance. LC connectors typically achieve 0.1–0.3 dB, SC connectors 0.25–0.5 dB, and MPO connectors 0.2–0.5 dB, with MPO loss varying based on fiber count and alignment complexity . Premium low-loss MPOs can reduce IL to below 0.35 dB . Return Loss (RL): Indicates reflected light; higher RL is better. APC-polished connectors (angled) reduce reflections significantly, while UPC-polished connectors provide moderate RL. LC and SC connectors support both APC and UPC polishing, enhancing reflection control . Durability: SC and LC connectors typically withstand 500–1,000 mating cycles, while MPO connectors handle around 500 cycles due to multi-fiber alignment complexity . FC connectors, with threaded designs, are ideal for high-vibration environments, offering secure connections.

Connector Size and Port Density

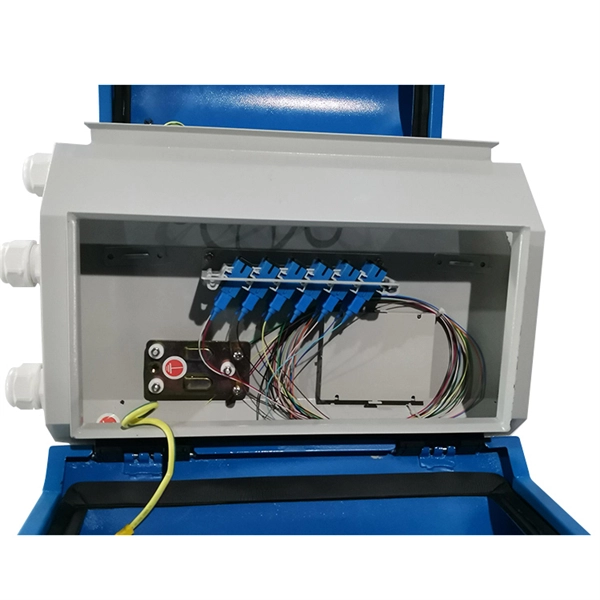

• SC: 2.5 mm ferrule, bulkier, suitable for legacy telecom or CATV systems. Standard density: 24 ports/U .
• LC: 1.25 mm ferrule, 50% smaller than SC, enabling double port density (e.g., 48 ports/U). Ideal for high-density data centers .
• MPO: Multi-fiber (12–72 fibers per connector), supports up to 144 fibers in 1U space, optimal for high-bandwidth backbone or aggregation links .

Practical Considerations

• Application Suitability: LC connectors excel in high-density, high-speed networks; SC connectors are reliable for general-purpose or legacy systems; MPO connectors are preferred for multi-fiber environments and data center backbones .
• Maintenance: Proper cleaning and inspection are critical. Dirty or worn connectors degrade IL and RL significantly . Use fiber-cleaning pens or alcohol-soaked lint-free wipes, and avoid touching ferrule ends .
• Standards Compliance: LC and SC connectors conform to IEC standards (e.g., IEC 61754 series), ensuring consistent optical performance, duplex support, and compatibility across systems . E2000 connectors offer additional protection with automatic flaps and push-pull locking for critical environments.

Summary

• Lowest IL: LC connectors due to smaller ferrule and precise alignment.
• High Port Density: LC and MPO connectors outperform SC in space-constrained environments.
• Durability: SC and LC connectors are robust; MPO requires careful handling.
• Specialized Use: FC for vibration-prone environments; APC polishing for minimal return loss.
• Standards Compliance: IEC-certified connectors ensure reliable, future-proof installations. Selecting the right connector depends on network density, fiber count, environmental conditions, and performance requirements. LC connectors are generally preferred for modern high-speed networks, SC connectors remain relevant for legacy systems, and MPO connectors are essential for multi-fiber, high-throughput applications.
