Huawei switch electrical port to optical port switching

Huawei switches with hybrid ports can convert electrical (copper) connections to optical (fiber) using SFP/SFP+ modules or hybrid cables, enabling data transmission and PoE simultaneously.

Using SFP/SFP+ Optical Modules

To convert an electrical port to an optical port, you can use SFP, SFP+, or SFP28 optical modules. These modules plug into the switch's SFP slots and handle the electrical-to-optical signal conversion, allowing the switch to transmit data over fiber instead of copper cables. Ensure the module type matches the port speed (1G, 10G, 25G, etc.) and the fiber type (single-mode or multi-mode) used in your network .

Using Hybrid Optical-Electrical Ports

Huawei hybrid switches, such as the CloudEngine S5732-H or S5735-S-V2 series, provide hybrid ports that support both electrical and optical connections. These ports can be connected using:

• First-generation hybrid cables: Connect the optical fibers via LC connectors to the switch's optical module and the copper wires via RJ45 or Phoenix connectors to the electrical port. The optical port handles data, while the electrical port provides PoE power .
• Second-generation hybrid cables (Hybrid Cable 2.0): These cables feature a PDLC connector that plugs directly into a hybrid optical-electrical port, allowing simultaneous data transmission and PoE without separate connections . This simplifies deployment and reduces cabling complexity.

Practical Steps for Conversion

1. Identify the hybrid port on your Huawei switch that supports optical modules or hybrid cables.
2. Select the appropriate optical module (SFP/SFP+/SFP28) for the desired speed and fiber type.
3. Insert the optical module into the switch port, ensuring correct orientation.
4. Connect the fiber cable to the module using LC connectors or a hybrid cable with a PDLC connector.
5. If using first-generation hybrid cables, connect the copper wires to the electrical port for PoE delivery.
6. Verify connectivity and ensure the switch recognizes the optical link.

Additional Considerations

• Hybrid switches support high-speed uplinks (10G, 25G, 40G, 100G) and can upgrade bandwidth by replacing optical modules without recabling .

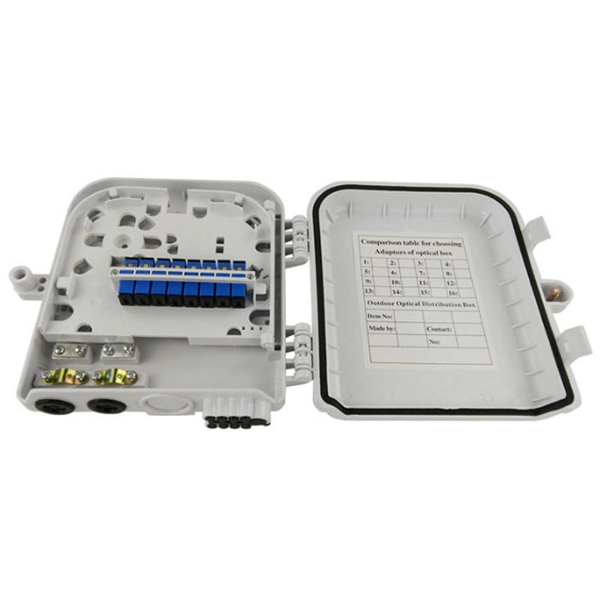

• When using hybrid cables, ensure proper fiber splicing and pigtail management inside terminal boxes to maintain signal integrity .
• For PoE devices like Wi-Fi 6 APs, hybrid ports can provide up to 60 W PoE++ over distances up to 300 meters using optical-electrical synergy . By using SFP modules or hybrid cables, Huawei switches allow flexible conversion from electrical to optical ports, supporting both high-speed data transmission and power delivery while minimizing network downtime and cabling costs.
