Waterproof distribution box configuration standard requirements

A waterproof distribution box must be mounted securely, sealed properly, and configured with IP-rated components to prevent water ingress, dust, and UV damage while ensuring safe electrical operation.

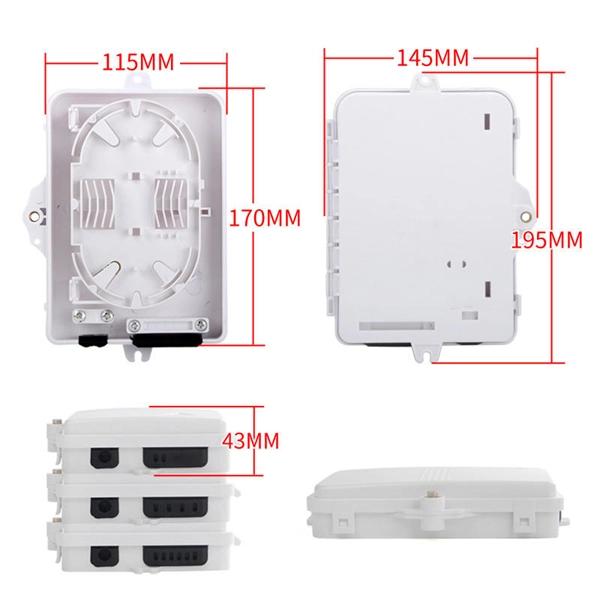

Enclosure Selection and IP Rating

Choose an enclosure rated IP65 to IP68 depending on environmental exposure. IP65 is suitable for rain and wash-down areas, while IP66–IP68 is recommended for extreme outdoor conditions or submersion scenarios. Materials should be UV-stabilized ABS or polycarbonate to resist sunlight degradation, and flammability should meet UL 94 standards for safety .

Mounting Requirements

• Mount the box on a flat, structural surface such as concrete or reinforced walls .
• Use M6 expansion bolts for concrete, torqued to 9–25 Nm depending on enclosure size and environmental stress .
• Maintain a minimum ground clearance of 1.2 meters to prevent water splashing and allow maintenance access .
• Ensure the enclosure is vertical within 5 degrees and wall brackets can support four times the fully loaded weight .
• Apply industrial silicone around mounting brackets to eliminate micro-gaps and prevent water ingress .

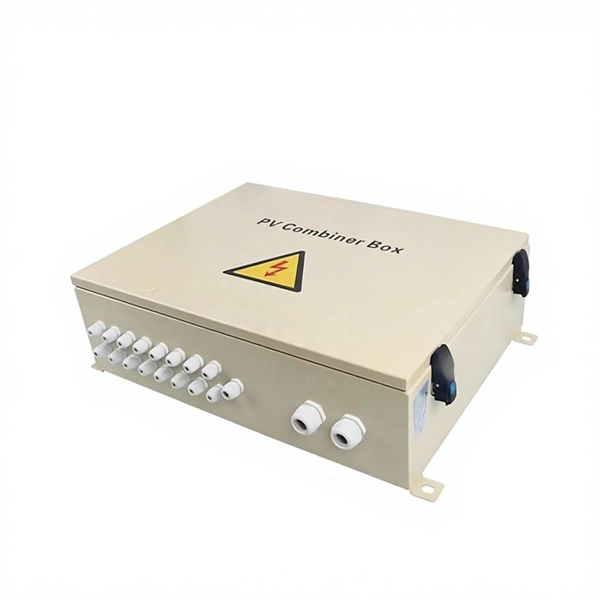

Cable Entry and Sealing

• Cables should enter from the bottom to prevent gravity-assisted water tracking .
• Use IP68-rated nylon or liquid-tight cable glands, tightening until the rubber seal compresses firmly around the cable jacket .
• Verify gasket alignment and apply continuous compression to prevent moisture pooling .
• Pre-molded knockout holes can be used for cable entry, but ensure liquid-tight glands are installed to maintain IP protection .

Internal Configuration

• Mount internal components on DIN rails or galvanized steel/reinforced fiberglass plates .
• Maintain 15 mm clearance around components for heat dissipation .
• Use molded mounting pillars to isolate components from back-wall condensation .
• Ensure all latches and fasteners are torqued correctly to maintain a pressure-tight seal .

Environmental Considerations

• Protect against UV exposure, thermal cycling, vibration, and dust .
• Ensure gaskets remain compressed during door closure to prevent degradation from sunlight or temperature changes .
• For outdoor solar PV or industrial applications, verify that all cable glands, gaskets, and fasteners maintain IP rating after repeated openings and environmental stress .

Summary

A properly configured waterproof distribution box combines correct enclosure selection, secure mounting, precise cable entry, and internal layout to maintain IP protection and long-term reliability. Following these requirements prevents water ingress, short circuits, and premature component failure, ensuring safe and continuous operation in harsh environments .
