How to correctly connect power to a distribution box

To connect power from a distribution box safely, first turn off the main supply, connect the incoming phase and neutral to the main MCB, wire through protective devices like RCCBs, and then connect outgoing circuits to the respective breakers.

Step-by-Step Connection Process

1. Safety First: Ensure the main power supply is completely turned off before starting any work to prevent electrical shock or accidents .

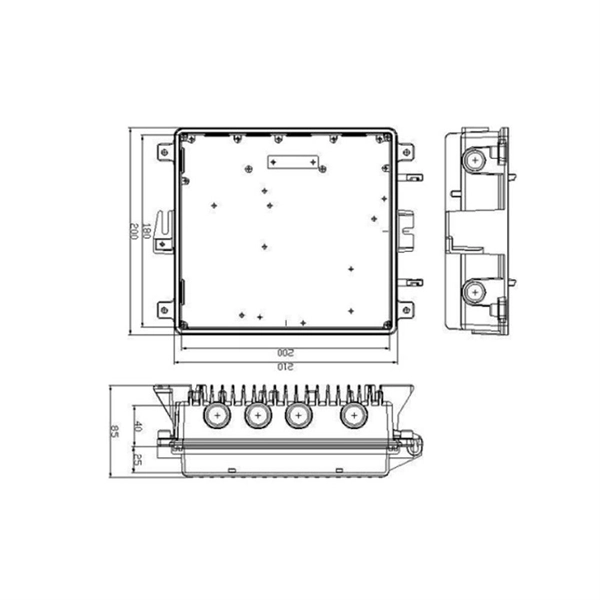

2. Mounting the Distribution Box: Secure the distribution box to a wall at an accessible height, ensuring the installation site is free of obstructions .
3. Connecting the Main Supply:
   • Identify the incoming live (phase) and neutral wires from the utility or main supply.
   • Connect the phase and neutral wires to the input terminals of the main MCB (usually a double-pole MCB for single-phase systems), .
   • If an RCCB is used for protection, connect the output of the main MCB to the input of the RCCB .
4. Wiring the Outgoing Circuits:
   • Connect each outgoing circuit wire to its corresponding MCB. Single-pole MCBs are typically used for individual loads, while double-pole MCBs may be used for special or high-power loads .
   • Connect the neutral wires from the RCCB to the neutral bus bar and the earth wires to the earth bus bar .
5. Organizing Wires:
   • Route wires neatly inside the box, generally with incoming connections on the left and outgoing connections on the right.
   • Use plastic ties to bind wires, keeping them straight and properly spaced .
6. Labeling and Verification:
   • Clearly mark all wires and circuits for easy identification and safety.
   • Use a multimeter to check for correct connections, continuity, and absence of short circuits before turning on the main supply .

Common Safety Considerations

• Avoid Overloading: Do not connect more circuits than the distribution box is rated for .
• Check Insulation: Ensure all exposed wires are properly insulated to prevent shorts .
• Use Protective Devices: Always include MCBs and RCCBs to protect against overloads, short circuits, and leakage currents .
• Manual Isolation: Both MCBs and RCCBs can be turned off manually to isolate circuits during maintenance . By following these steps and safety precautions, you can safely connect power from a distribution box to multiple circuits while ensuring protection for both the electrical system and users.
