How to coil 4-core optical fiber cable at the splice box

Properly coiling a 4-core optical fiber cable in a splice box ensures minimal signal loss and organized fiber management.

Preparation

Before coiling, strip the outer jacket and coating of the fiber carefully using a fiber stripper, exposing the bare fiber cores without damaging them. Clean the fibers with lint-free wipes and isopropyl alcohol to remove dust or contaminants, which is essential for maintaining signal integrity . Use a precision cleaver to create smooth, perpendicular end faces for splicing .

Coiling Technique

1. Maintain Minimum Bend Radius: Each fiber has a recommended minimum bend radius (typically 30 mm for single-mode fibers). Coiling should follow this radius to prevent microbends or signal attenuation .

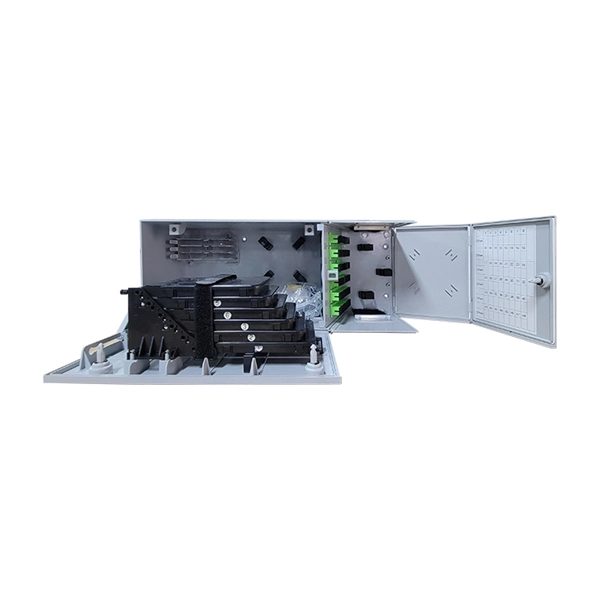

2. Use a Splice Tray: Place the fibers in a dedicated splice tray inside the splice box. The tray has slots or compartments to guide the fibers and hold the splices securely .
3. Form Loops: Coil each fiber into gentle loops, usually in a circular or oval pattern, ensuring loops do not overlap tightly. Keep the loops uniform and avoid sharp bends .
4. Secure the Fibers: Use the tray's clips or adhesive pads to hold the coiled fibers in place. This prevents movement that could stress the splices or fibers .
5. Label and Organize: Clearly label each fiber and splice to maintain logical organization, which simplifies future maintenance or troubleshooting .

Final Steps

After coiling, insert the splice protection sleeves over each splice to shield them from environmental factors. Close the splice box carefully, ensuring no fibers are pinched or stressed. Test the spliced fibers using an OTDR or power meter to verify signal integrity and confirm minimal loss . By following these steps, your 4-core optical fiber cable will be neatly coiled, protected, and ready for reliable operation within the splice box.
