Composition of Communication Optical Cable Circuit

Communication optical cable circuits consist of a structured fiber-optic cable core, protective layers, and circuit components including light sources, modulators, amplifiers, and detectors to ensure efficient data transmission.

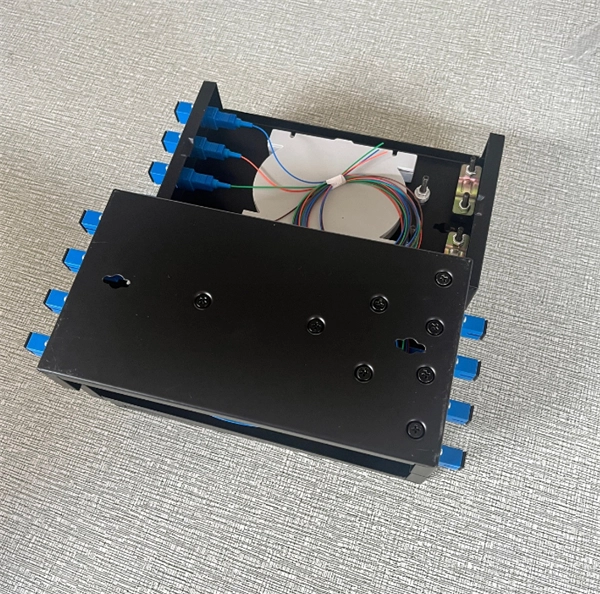

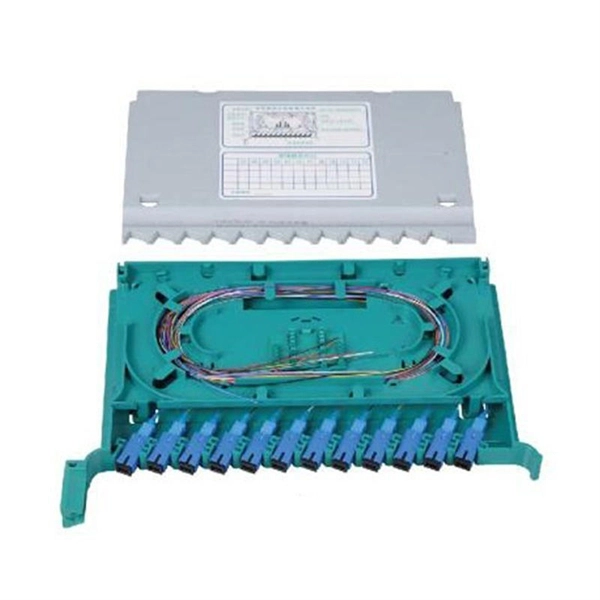

Physical Structure of Optical Cables

Core: The core is the central part of the optical cable, typically made of highly pure glass (silicon dioxide) or sometimes plastic, which carries the light signals. Single-mode fibers have cores around 8–10 µm, while multimode fibers range from 50–62.5 µm in diameter . Cladding: Surrounding the core, the cladding has a lower refractive index to contain light within the core through total internal reflection, ensuring minimal signal loss . Coating and Strength Members: A protective coating surrounds the cladding to prevent physical damage. Strengthening fibers, often made of aramid yarn or fiberglass, provide tensile strength to withstand mechanical stress . Sheath and Armor: The cable is enclosed in an inner and outer sheath. The inner sheath may be semi-hermetic, using plastic-coated aluminum (PAP) or steel (PSP) strips to prevent moisture ingress. The outer sheath, sometimes armored with steel wires or tapes, protects against environmental hazards, direct burial, or rodent damage . Cable Core Types: Common core structures include layer-twisted, skeleton (trough), belt, and central beam tube types. Strength members can be placed centrally or around the periphery depending on regional standards .

Optical Communication Circuit Components

Light Sources: Lasers and LEDs convert electrical signals into optical signals. Lasers are preferred for long-distance, high-speed communication due to their coherent, high-intensity output . Modulators: These devices encode data onto the light wave, using techniques like On-Off Keying (OOK) or Quadrature Amplitude Modulation (QAM) to transmit information efficiently . Optical Amplifiers: Amplifiers such as Erbium-Doped Fiber Amplifiers (EDFAs), Semiconductor Optical Amplifiers (SOAs), and Raman amplifiers boost signal strength over long distances. EDFAs are widely used for their high gain, wide bandwidth, and ability to amplify multiple wavelengths simultaneously . Detectors: Photodetectors, typically photodiodes, convert incoming light signals back into electrical signals for processing at the receiver end . Wavelength Division Multiplexing (WDM): WDM circuits allow multiple data channels to be transmitted simultaneously over a single fiber, increasing the overall capacity of the optical network .

Summary

A communication optical cable circuit integrates mechanically robust fiber-optic cables with sophisticated optical components to transmit data at high speed and over long distances. The combination of core, cladding, coatings, strength members, and protective sheaths ensures physical integrity, while light sources, modulators, amplifiers, and detectors maintain signal quality and enable high-capacity communication. This design allows modern fiber-optic systems to achieve low attenuation, minimal latency, and high reliability.
